MK-3030V 35HP

The MK-3000 series Concrete Saws are big performance saws in small packages. They have been engineered to take advantage of the new breed of high horsepower V-Twin air-cooled engines from Briggs and Stratton and Kohler. They provide the cutting depth and power of traditional street saws with all the advantages of a smaller, more manoeuvrable saw.



The Briggs & Stratton Vanguard 35Hp engine air cooled v-twin horizontal shaft engine is industry proven standard for Big Block engine power, performance and reliability. Features include Dura-Bore cast iron cylinder sleeves and a high efficiency OHV head design for improved efficiency, smoother idle, lower emissions and more power. Magnetron electronic ignition provides dependable starts with no required maintenance.



The Kohler Command Pro CH980 is a v-twin cylinder, air-cooled, 35 hp horizontal-shaft engine that is built to last. OHV, cast iron cylinder liners, and aluminum black construction make the 4-cycle, Command PRO ready for the long haul.



MK-3000 Gas Series Features:

  • Totally enclosed and sealed blade shaft with continuous oil bath lubrication system
  • Quick release, auto-latching bayonet mount blade guard
  • Three position adjustable solid steel handlebars
  • Blade guard uses “ride on the blade” water tubes for superior water delivery and blade cooling
  • Saw designed for left or right side mounting of blade and blade guard
  • Rigid frame front pointer with high visibility guide wheel for accurate tracking
  • Instrumentation includes engine tach, fuel level and hour meter
  • Ergonomic FNR traverse control
  • Depth of cut indicator
  • Blade guard has garden hose style connector for quick disconnecting

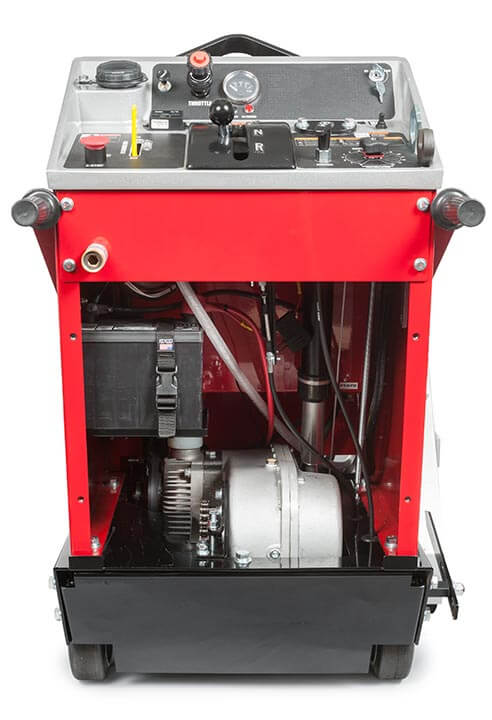

  • Removable rear panel for easy service
  • 7 3VX belts from engine to blade shaft
  • Electric leadscrew for positive adjustment of cutting depth
  • Wide front wheel base increases stability and allows ramp loading/unloading
  • Eaton model 6 Hydrostatic transmission coupled to an MK trans-axle
  • One-year limited warranty
Engine Specifications
ManufacturerVanguardKohler
EngineVanguard V-Twin
Big Block OHV 35
Kohler Command Pro
CH980
Max Horse Power*35 Hp35 Hp
Displacement60.6 cu in61 cu in
Bore3.366″3.5″
Stroke3.406″3.1″
Cylinders / Cycle2 Cylinders 4 Cycle2 Cylinders 4 Cycle
Fuel Capacity5 Gal.5 Gal.
Oil Capacity2.5 Qt.2.9 Qt
Air FilterThree StageThree Stage
StarterElectricElectric
Engine CoolingAirAir



General Specifications
Blade RPM1,900
Depth of Cut – 20″ Blade7-1/2″
Depth of Cut – 26″ Blade10-1/2″
Depth of Cut – 30″ Blade12-1/2″
Arbor1″ with 3/8″ Drive Pin
Fuel Capacity5 gal
Travel Speed0-220 FPM forward
0-100 FPM reverse
Starting SystemElectric
L x W x H50″ x 30-1/2″ x 44″
L x W x H (mm)1,270 x 775 x 1,118
Handle Extension22″ (599mm)
Weight650 lbs.



MK-3000 – Vanguard Engine
ModelBlade GuardPart #
MK-3020V20″166447-20
MK-3026V26″166447-26
MK-3030V30″166447-30
MK-3000 – Kohler Engine
ModelBlade GuardPart #
MK-3020K20″166449-20
MK-3026K26″166449-26
MK-3030K30″166449-30





Recommended Blades
 Cured Concrete
Hard Aggregate/Non-Abrasive
MK-7501
 Cured Concrete
Medium-Hard Aggregate
  MK-7502
 Cured Concrete
Hard Aggregate
 MK-7503
 Green Concrete
Hard Aggregate
 MK-7601W
 Asphalt over Concrete
Asphalt Overlay
 MK-7625
 Asphalt
Soft Aggregate
 MK-7710W



* Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.
